Data Automation Rules

last updated on: July 16, 2021

The Enterprise File Fabric's Data Automation Rules deliver if-this-then-that functionality for automatically taking actions when certain types of events happen on File Fabric.

Each Data Automation Rule configured in the Enterprise File Fabric consists of an event trigger (e.g. “File is uploaded”) which triggers one or more configurable actions (e.g. “Transcode video file” or “Perform content intelligence”).

  • Enterprise File Fabric Appliance v2106 and above (all licenses; functionality varies according to licensed features)
  • Enterprise File Fabric Appliance v1808 - v2006 (licenses including Content Discovery)

The Data Automation Rules configuration page is accessed from the Organization menu by the organization administrator and by users with the Administrator role.

This section outlines the available Event Types that the Enterprise File Fabric supports.

1. File is uploaded through this platform

Description: This event is triggered when a file is uploaded by a user directly on the Enterprise File Fabric. The scope of this upload can be narrowed using the Folder selector.

Available since: 2106.00

2. File is discovered on storage

Description: This event is triggered when a file is discovered directly on a storage platform under the management of the Enterprise File Fabric. A file will be discovered when a Provider Re-sync, Cloud Refresh or Deep Cloud Refresh is performed; this event type does not trigger the 'automatic discovery' of files or folders. The scope of this upload can be narrowed using the Folder selector.

Available since: 2106.00

3. File is discovered on storage or uploaded

Description: This event is the union of Event Types 1 and 2.

Available since: 2106.00

4. File contains matches against Content Discovery Rules

Description: This event is triggered when a file has been scanned using the Content Discovery rules, and the scan results contain one or more matches against the Content Discovery rules. Each rule applies to a single Content Detection Category which must be selected when setting up the rule.

Available since: 1906.00

1. Copy file to another folder

This action copies the file that triggered the event to a designated folder. The designated folder can be selected using the folder selector control. The Copy operation will performed as a Background Task assigned to the Admin user.

Supported Events: #1, #2, #3, #4

Available since: 1906.00

2. Perform Content Intelligence

This action sends the file that triggered the event to the Content Intelligence module for analysis. The Content Intelligence extractors that are enabled at the time of the event will be executed for the file. The process of Content Intelligence will be executed via a Background Task and will performed as per the systems Task scheduling.

Supported Events: #1, #2, #3

Available since: 2006.00

3. Transcode file

This action sends the file that triggered the the event to be transcoded using the File Fabric's transcoding capabilities. When configuring this event type, you are required to select the Trancoding Preset you wish file to be transcoded into.

Supported Events: #1, #2, #3

Available since: 2106.00

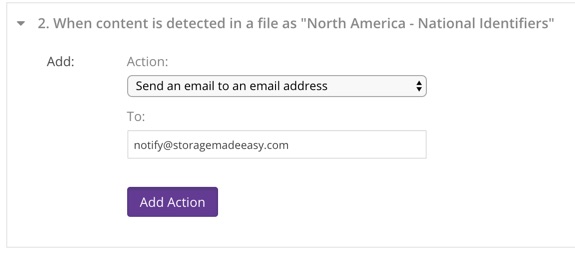

4. Send email to an email address

This action allows the event to notify a single email address when a qualifying event is triggered. The email address is specified during the configuration of the action.

Supported Events: #4

Available since: 1906.00

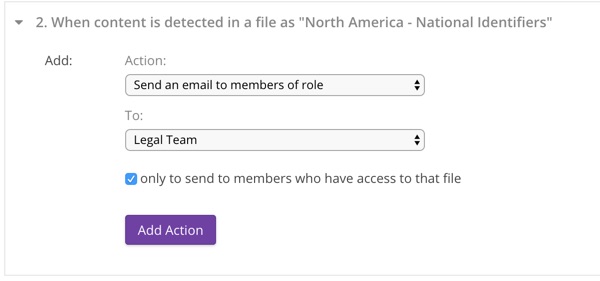

5. Send email to members who have a role

This action sends a notification of the triggering event by email to organization members who have the specified role. When configuring the action you must select the role from the dropdown, as well as whether the notification should only be sent to members of that role that have permissions to access the file that triggered the event, or to all members with the role regardless of their permissions.

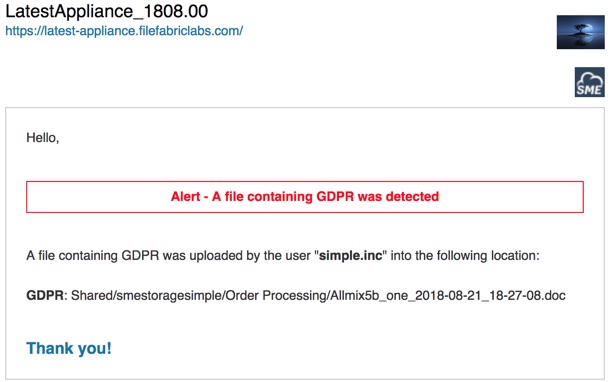

An email like the following will be sent when matching content is detected:

Supported Events: #4

Available since: 1906.00

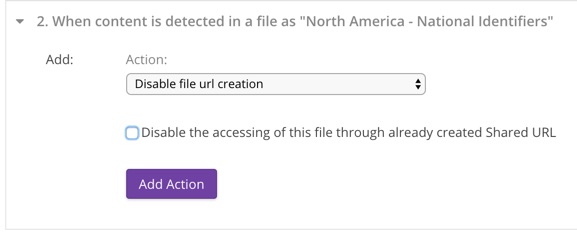

6. Disable file URL creation

This action prevents the file being shared through the creation of secure shared links. This action can also be configured to disable existing shared links.

Supported Events: #4

Available since: 1906.00

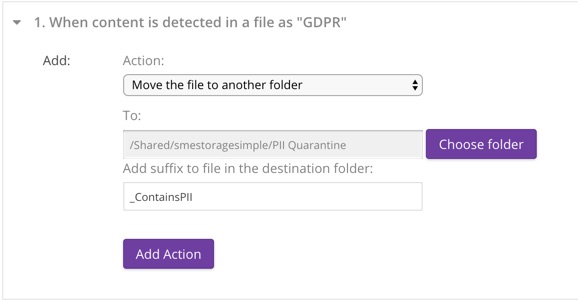

7. Move file to another folder

This action moves files matched by Content Detection to a nominated folder. This could be used to quarantine files that may contain sensitive data, or to classify files by location (folder) based on specific content. Only one move to folder action is allowed per Content Detection Category per rule.

Configuration

  • Choose folder from dialog (folder must exist or can be created from dialog)

A suffix is added to the file as it is moved which includes the date and time. This prevents subsequent updates overwriting the quarantined version. An additional optional suffix may also be added. File extensions are preserved.

For example, with an provided suffix of “_ContainsSSN” the new name for:

CreditApplication.pdf

would be:

CreditApplication_ContainsSSN_2018-08-20_22-08-24.pdf

Supported Events: #4

Available since: 1906.00

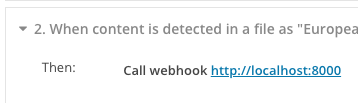

8. Call webhook

This action causes the File Fabric to invoke an HTTP callback when a qualifying event occurs. The File Fabric customer using this option is responsible for providing the callback implementation at the URL configured for the action in the rule, and for ensuring that the URL is reachable by the File Fabric.

The File Fabric invokes the callback with the HTTP POST request method. The callback is invoked once per file for which a qualifying event is detected.

The HTTP request will contain a User-Agent header et to the site title of the File Fabric sending the HTTP request followed by the File Fabric version, for example: “SME Appliance 2106.00“. It will also contain a Content-Type header set to “application/json”.

The request body is a JSON representation of information about the file in which the qualifying content was discovered and about the event that caused the webhook to be called. Here is an example:

{
   "type":"content_detected",
   "date":"2021-06-15 08:51:22",
   "data":{
      "file":{
         "fi_id":"134378721",
         "pii_detected_metaids":[
            "119",
            "118"
         ],
         "pii_unset_metaids":[
            "46",
            "129",
            "130"
         ],
         "had_before_pii":{
            "119":0,
            "46":null,
            "118":0,
            "129":null,
            "130":null
         }
      },
      "filepath":"Amazon S3 files (content indexing)/Sweden - Passport.txt",
      "action":{
         "ev_id":"59",
         "ev_orgid":"3623",
         "ev_type":"content_detection",
         "ev_param":"118",
         "ev_created":"2021-06-14 08:53:52",
         "ac_id":"136",
         "ac_evid":"59",
         "ac_orgid":"3623",
         "ac_type":"webhook",
         "ac_param":"https://dev.filefabriclabs.com",
         "ac_param2":"",
         "ac_created":"2021-06-14 08:54:07"
      }
   }
}

Webhook invocations by the File Fabric will timeout if a connection cannot be established with the webhook host within 3 seconds, or if the first byte of the reply is not received within 30 seconds after the connection is established. The rule that invoked the webhook will pause until the response is received or a timeout has occurred.

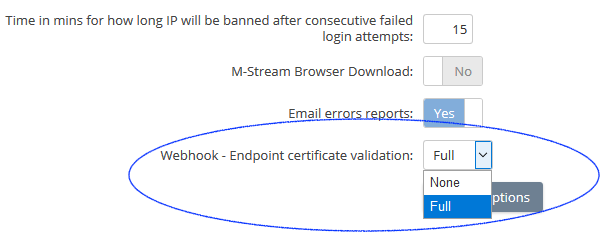

At the discretion of the implementor, webhooks can be accessed using HTTP or HTTPS. The URL's protocol component should indicate the correct method of access. When HTTPS is used the File Fabric will the SSL certificate provided by the webhook host if validation is turned on in Site Functionality.

Supported Events: #4

Available since: 2106.00
